forged via ferrata anchor

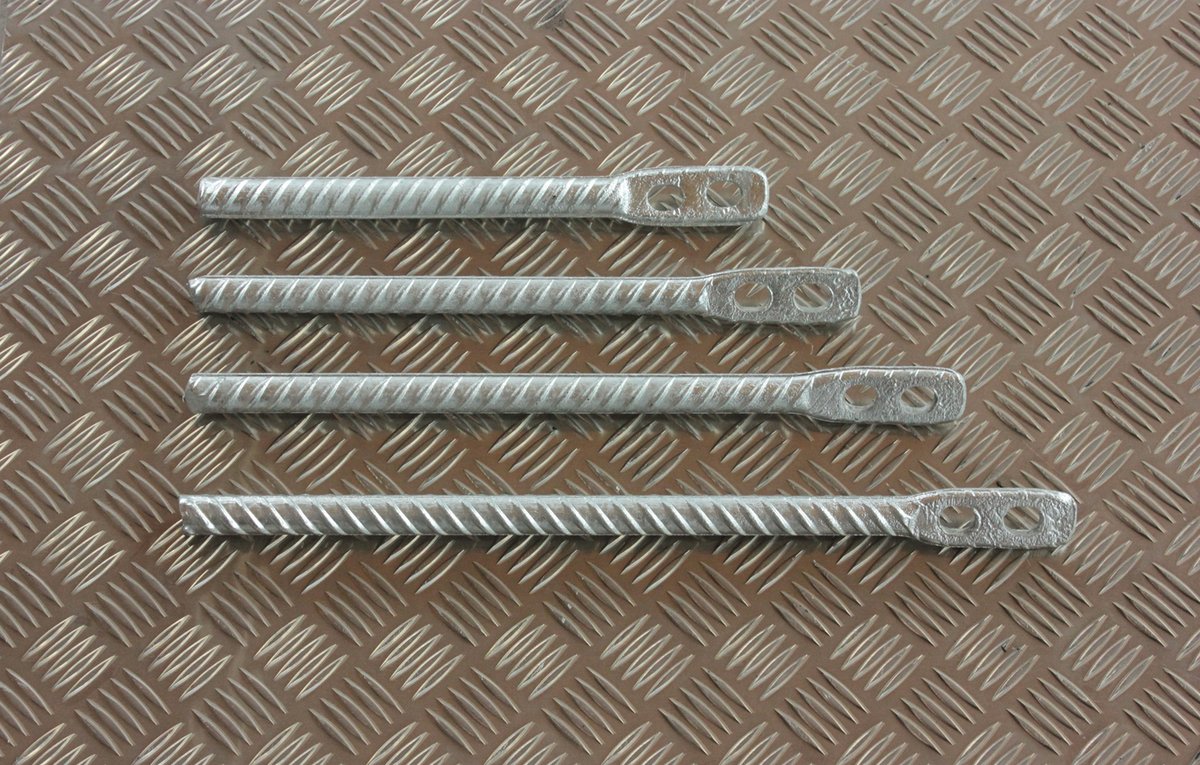

Forged via ferrata anchor DN20 hot-dip galvanized
| Item nr. |
nominal size |
total length |
|
MÖG-20/250 |
approx. 23 mm |
approx. 250 mm |
|
MÖG-20/300 |
approx. 23 mm |
approx. 300 mm |
|
MÖG-20/350 |
approx. 23 mm |
approx. 350 mm |
|
MÖG-20/400 |
approx. 23 mm |
approx. 400 mm |
|
MÖG-20/450 |
approx. 23 mm | approx. 450 mm |
|
MÖG-20/500 |
approx. 23 mm | approx. 500 mm |
|
MÖG-20/600 |
approx. 23 mm | approx. 600 mm |
|
MÖG-20/700 |
approx. 23 mm | approx. 700 mm |
|
MÖG-20/800 |
approx. 23 mm | approx. 800 mm |
|
MÖG-20/900 |
approx. 23 mm | approx. 900 mm |
|
MÖG-20/1000 |
approx. 23 mm | approx. 1000 mm |
Via ferrata anchor DN26 forged hot-dip galvanized
|
Item nr. |
nominal size |
total length |
|
MÖG-26/250 |
approx. 30 mm |
approx. 250 mm |
|
MÖG-26/300 |
approx. 30 mm |
approx. 300 mm |
|
MÖG-26/350 |
approx. 30 mm |
approx. 350 mm |
|
MÖG-26/400 |
approx. 30 mm |
approx. 400 mm |
|
MÖG-26/450 |
approx. 30 mm | approx. 450 mm |
|
MÖG-26/500 |
approx. 30 mm | approx. 500 mm |
|
MÖG-26/600 |
approx. 30 mm | approx. 600 mm |
|
MÖG-26/700 |
approx. 30 mm | approx. 700 mm |
|
MÖG-26/800 |
approx. 30 mm | approx. 800 mm |
|
MÖG-26/900 |
approx. 30 mm | approx. 900 mm |
|
MÖG-26/1000 |
approx. 30 mm | approx. 1000 mm |
Via ferrata anchor DN30 forged hot-dip galvanized
|
Item nr. |
nominal size |
total length |
|
MÖG-30/300 |
approx. 30 mm |
approx. 300 mm |
|
MÖG-30/400 |
approx. 30 mm |
approx. 400 mm |
additional lengths up to 1m in stock! Production of custom lengths possible
Description

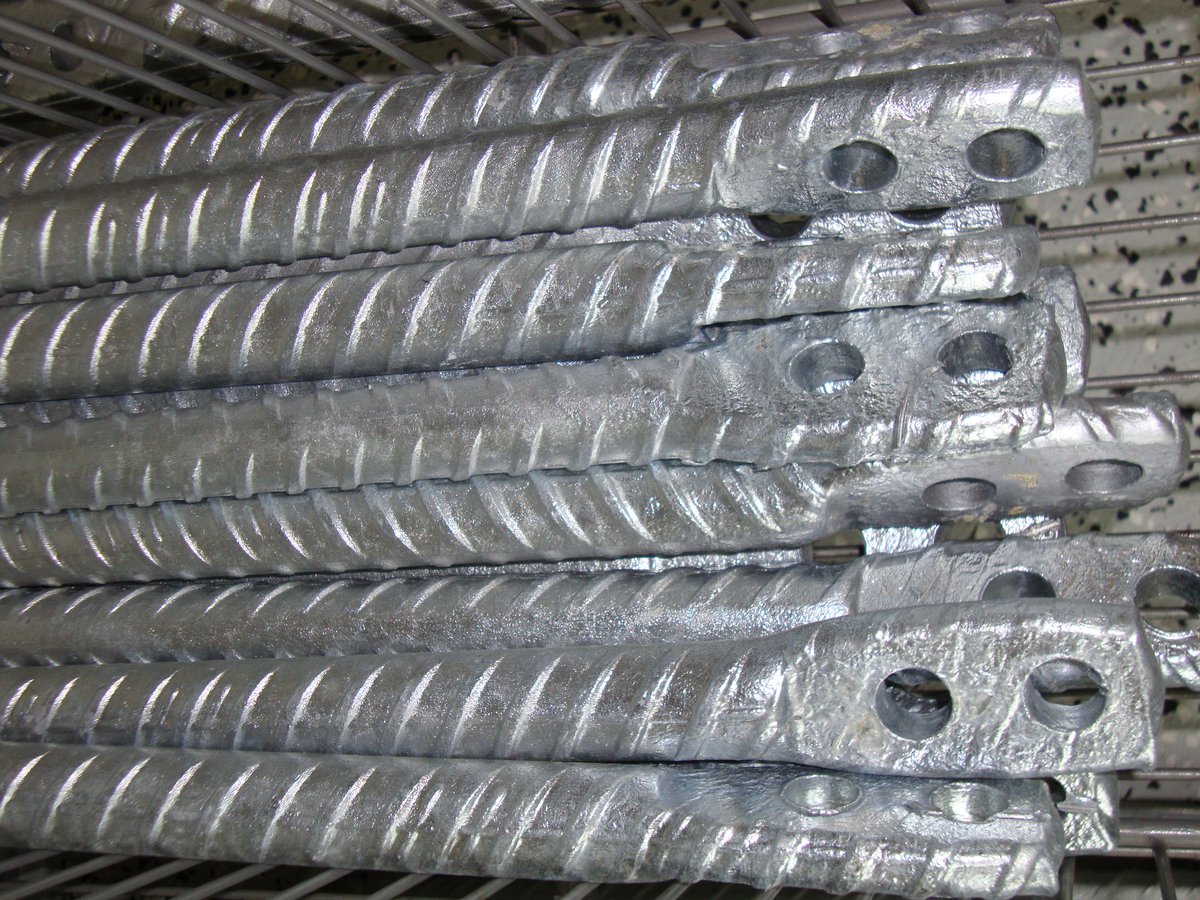

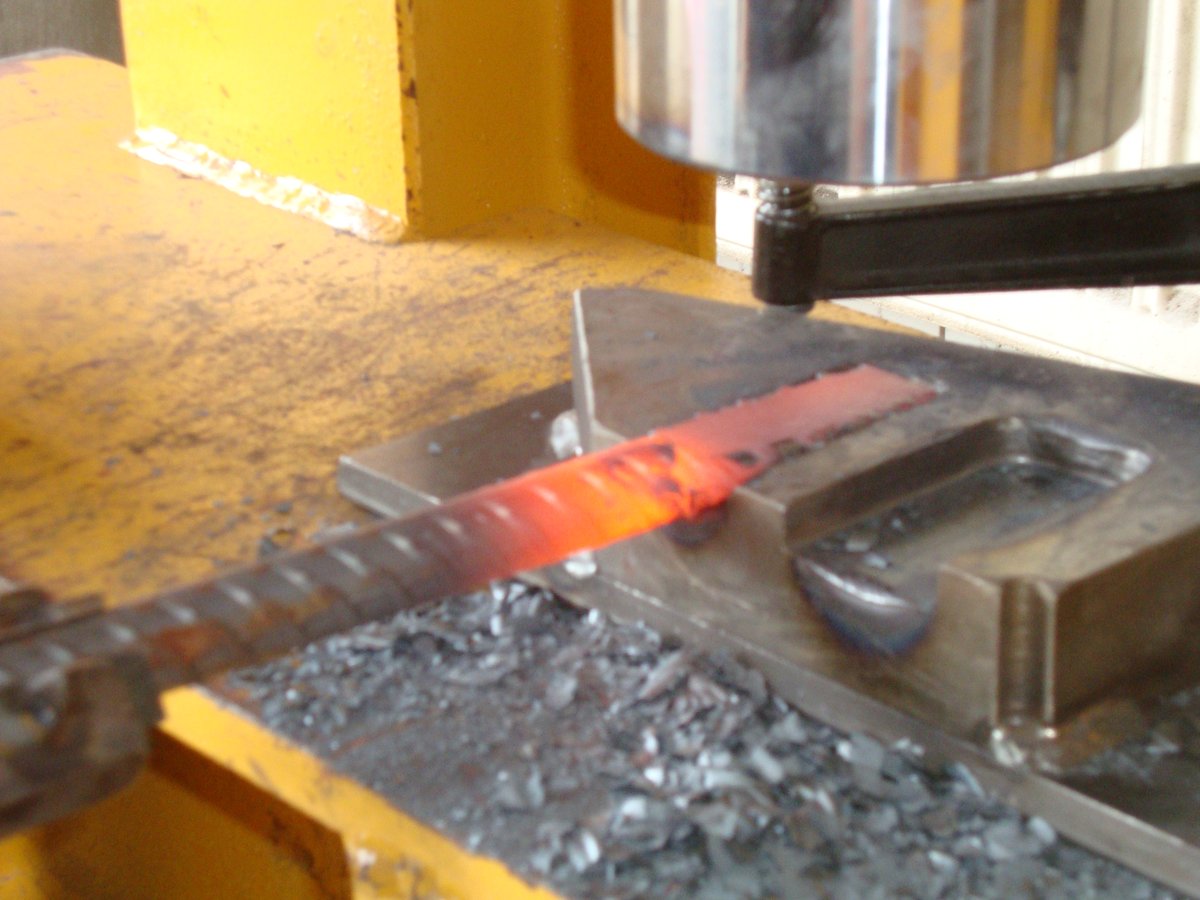

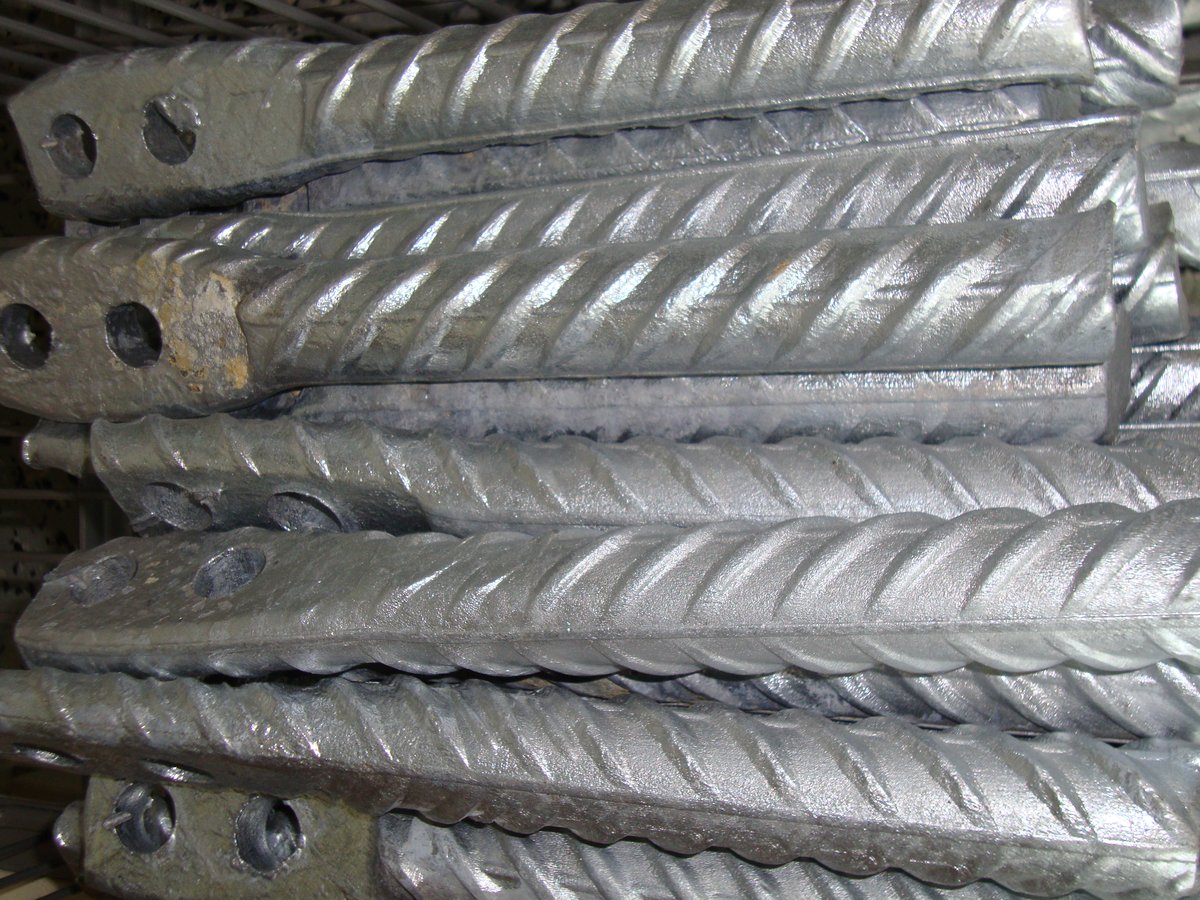

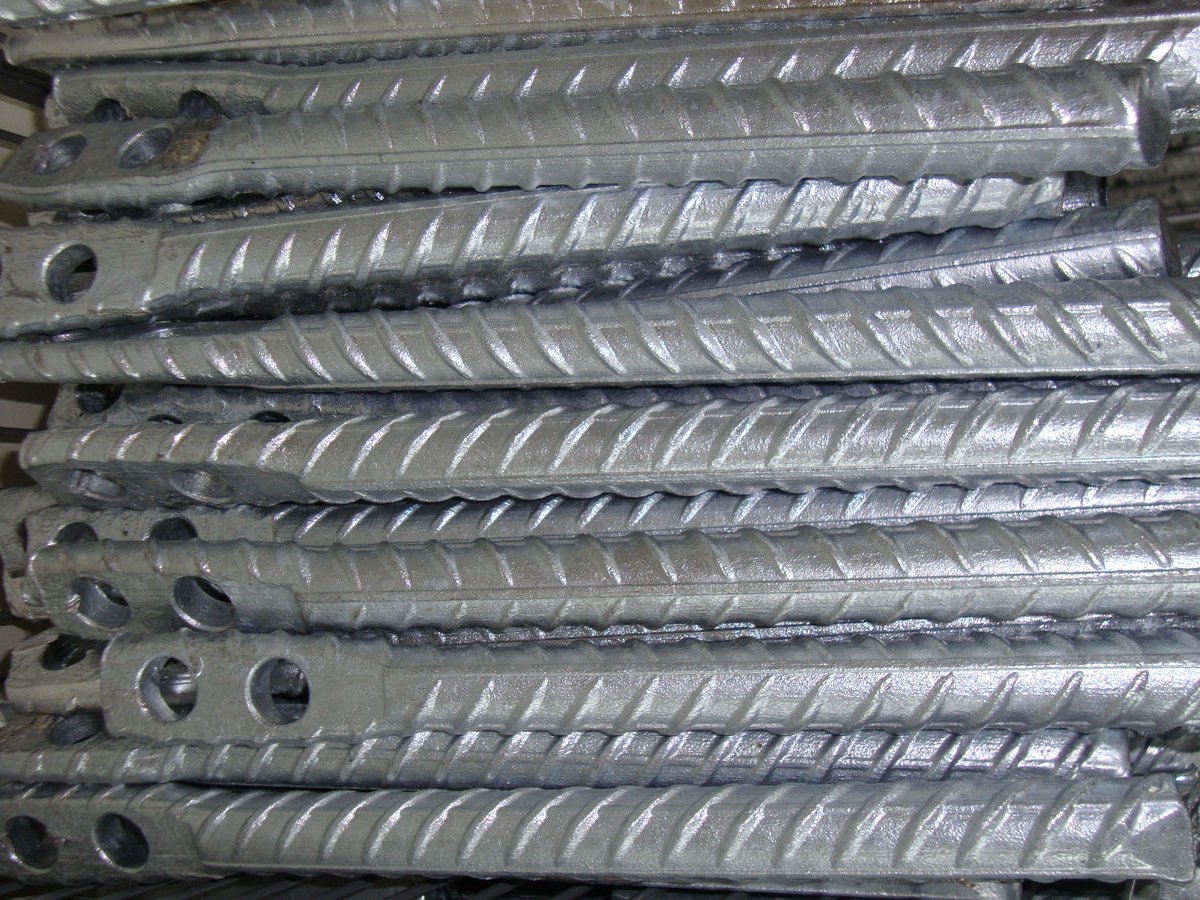

After heating up to a temperature between 900 and 1300°C the metal billets are press forged with our specially designed die. The advantage of this method is that our via ferrata anchors are made out of a tension free steel structure. After forging the anchors, they get hot dip galvanized according to standards EN ISO 1461.

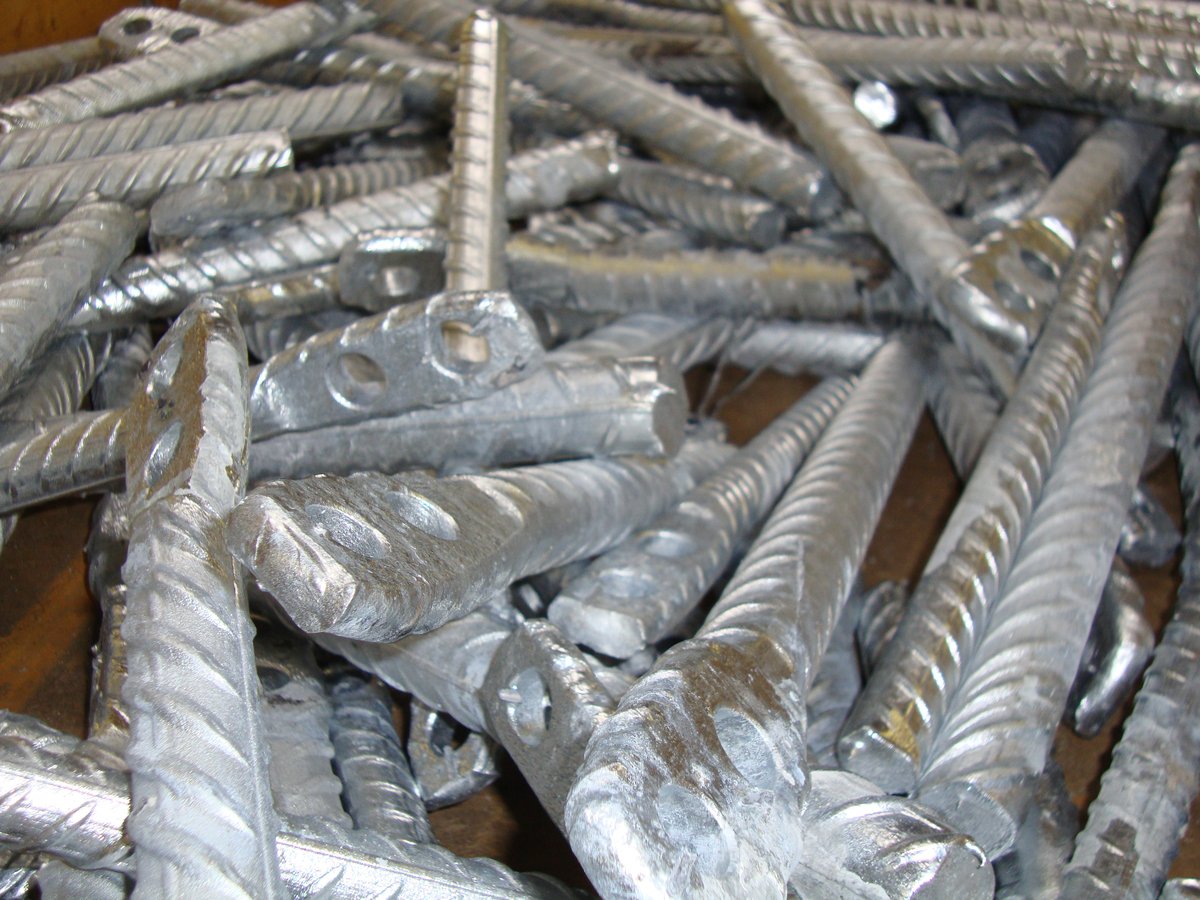

The holes are pierced in to fit our wire rope grips between M 13 to M19 (DKV 0513, DKV 0516, DKV 0519) If you plan to use different sized clamps please state so in the order.
