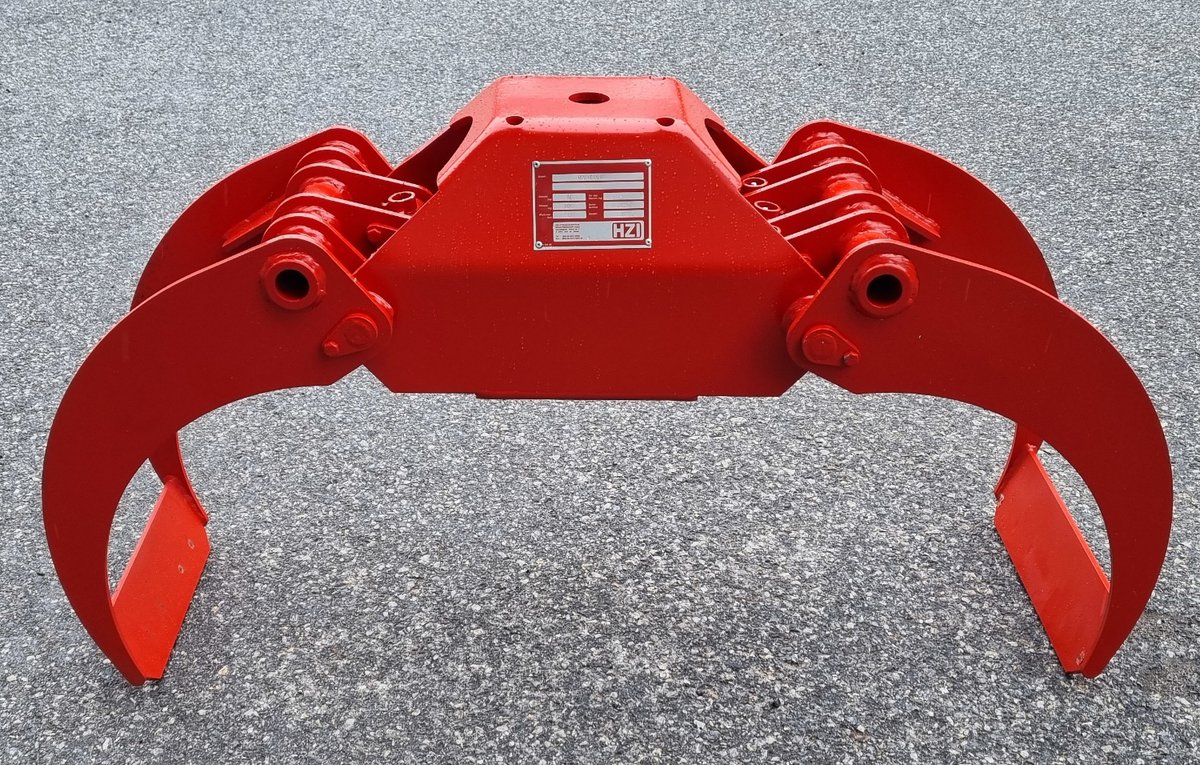

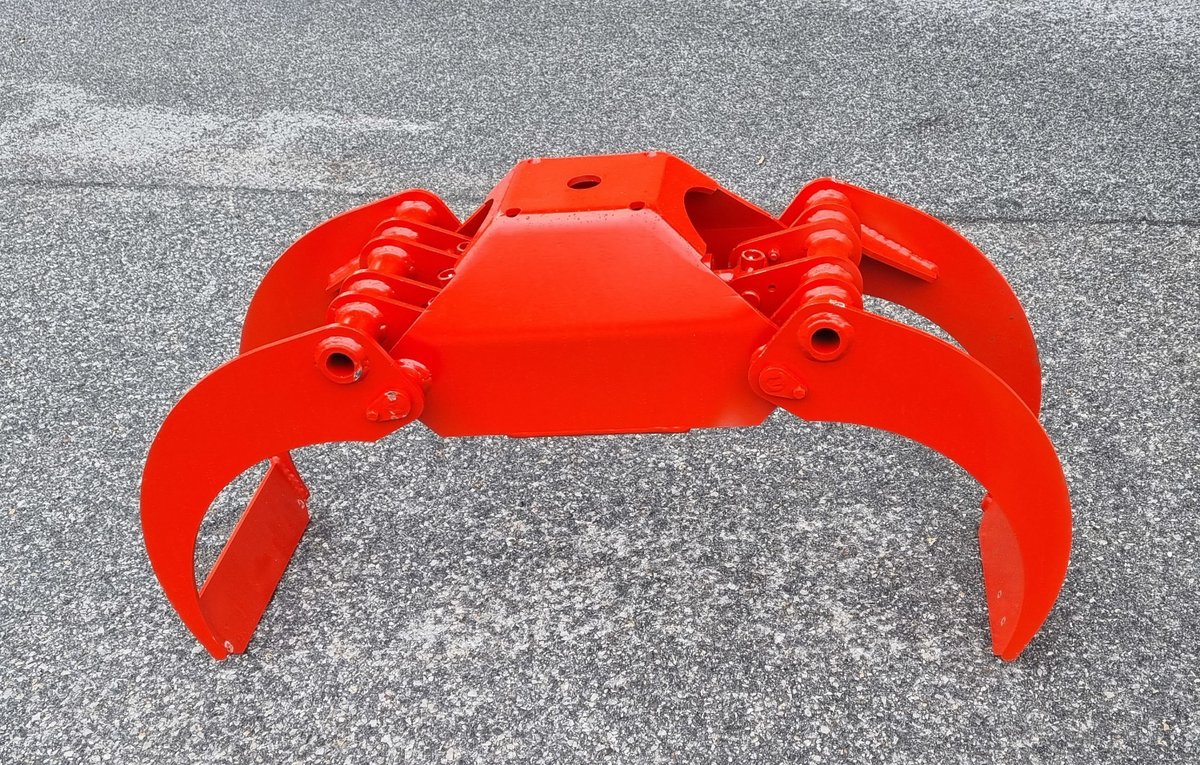

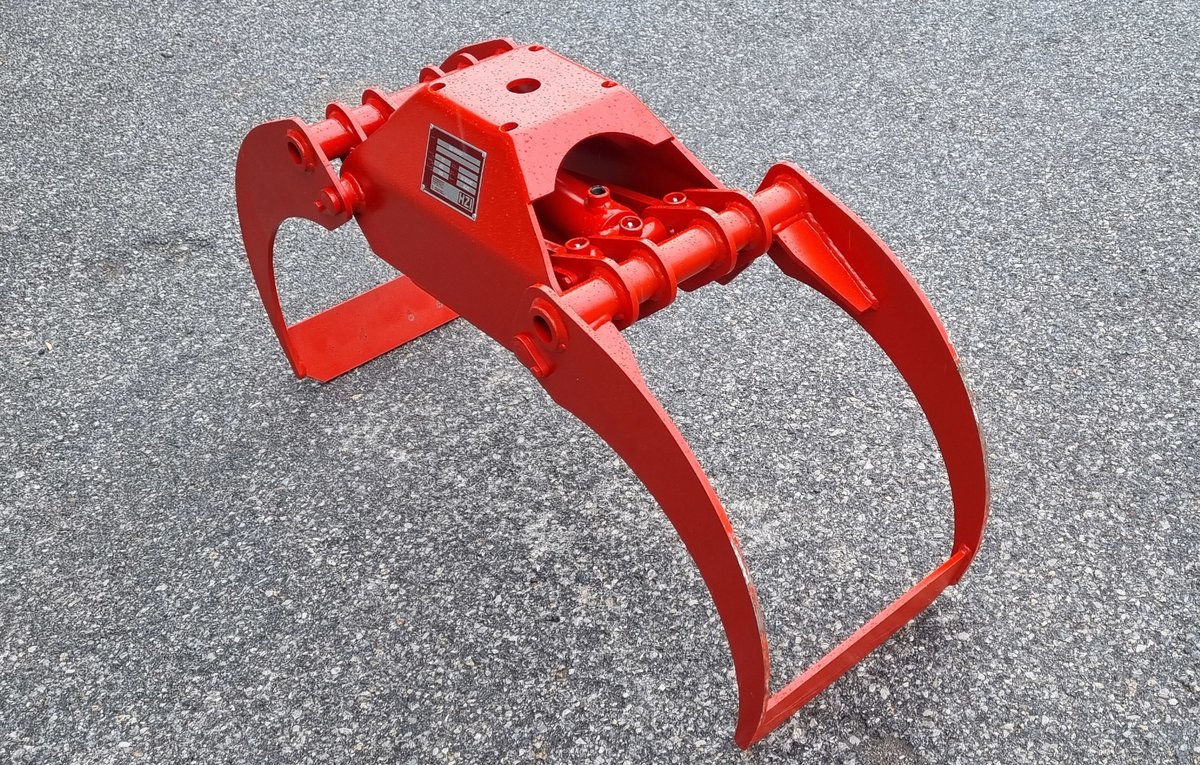

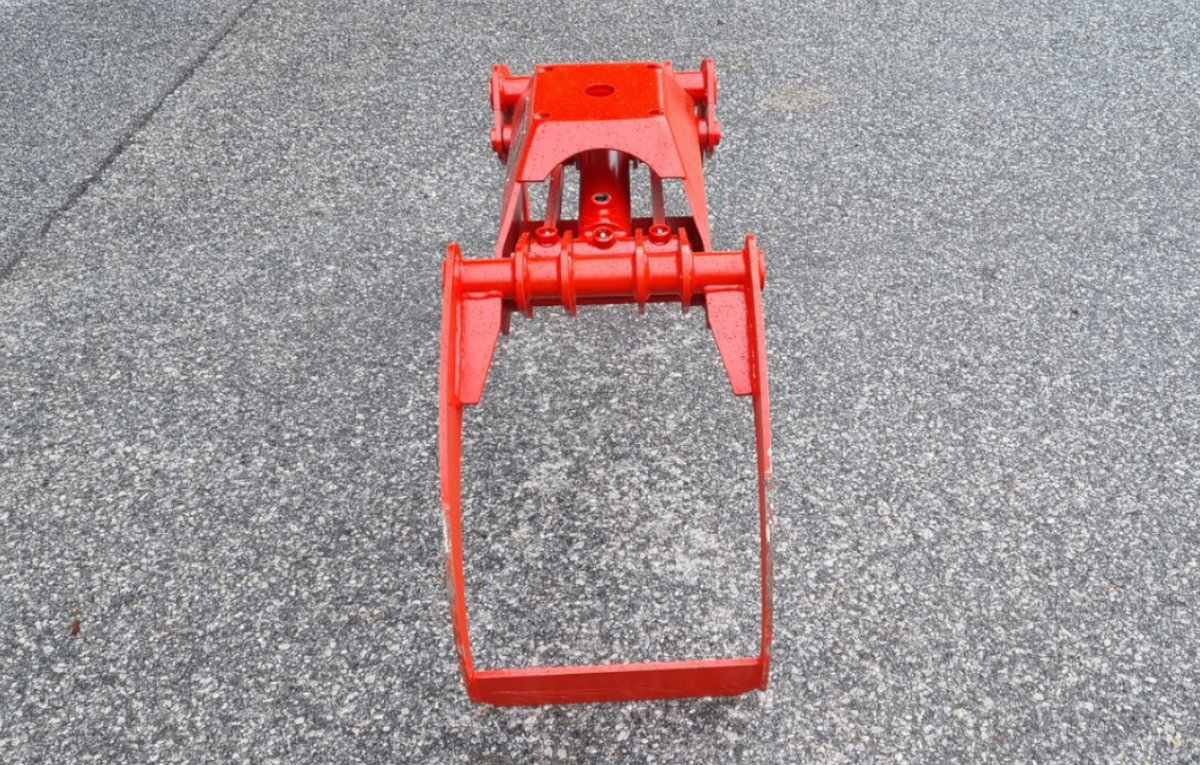

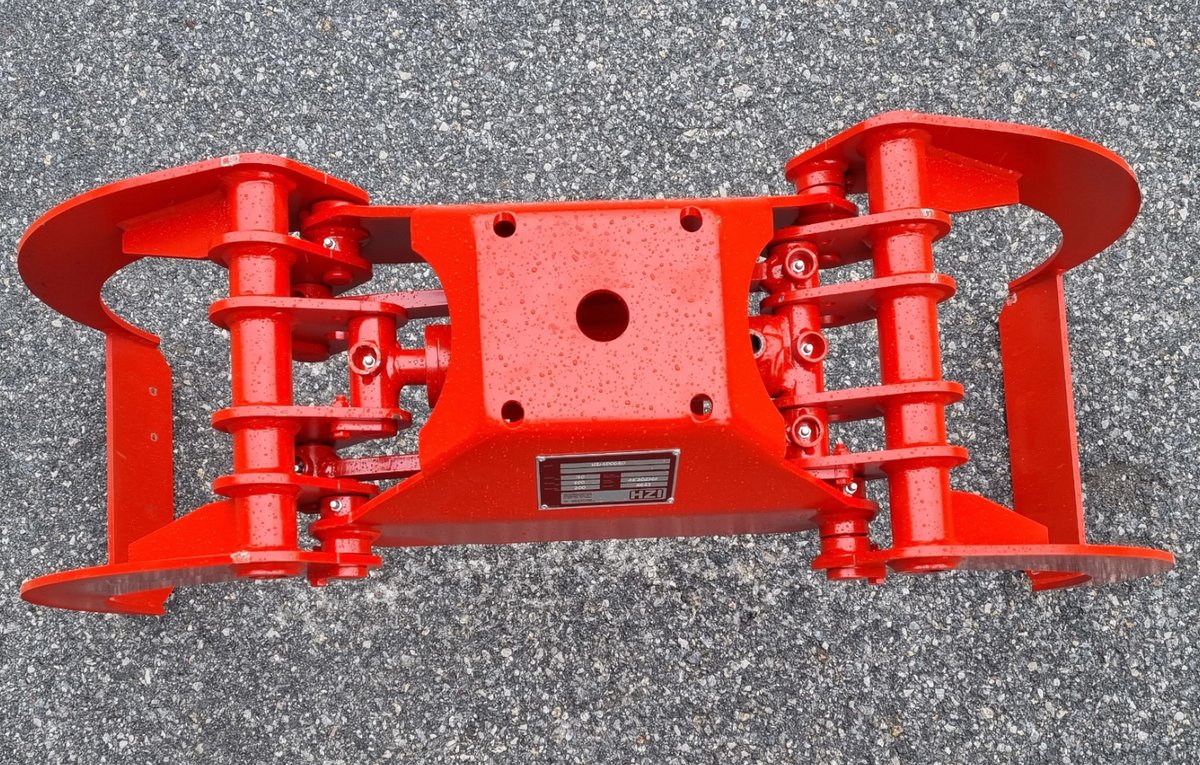

Wood gripper 1000
Log grapple, bearing capacity 0,8 ton, opening width 1.000mm
item number: HZI-1000-RO
Technical data
| Type | HZI1000RO |
| CWC* | 1 - 1,8 ton |
| Weight | 70 kg |
| OP* max. | 200 bar |
| Lift capacity | 800 kg |
| Grapple opening | 1,0 m |
*CWC = carrier weight class
*OP = Operating Pressure
Professional log grapple with 1 horicontal cylinder
• Wide construction
• Compatible with load and forest crane
• Carrier weight class: 1,0 - 1,8 tons
• Connections: 3/8"
• Oil flow: 20 l/min
Abmessungen
| A | 1.000 mm |
| B | 1.099 mm |
| C | 591 mm |
| D | 426 mm |
| E | 55 mm |
| F | 377 mm |
