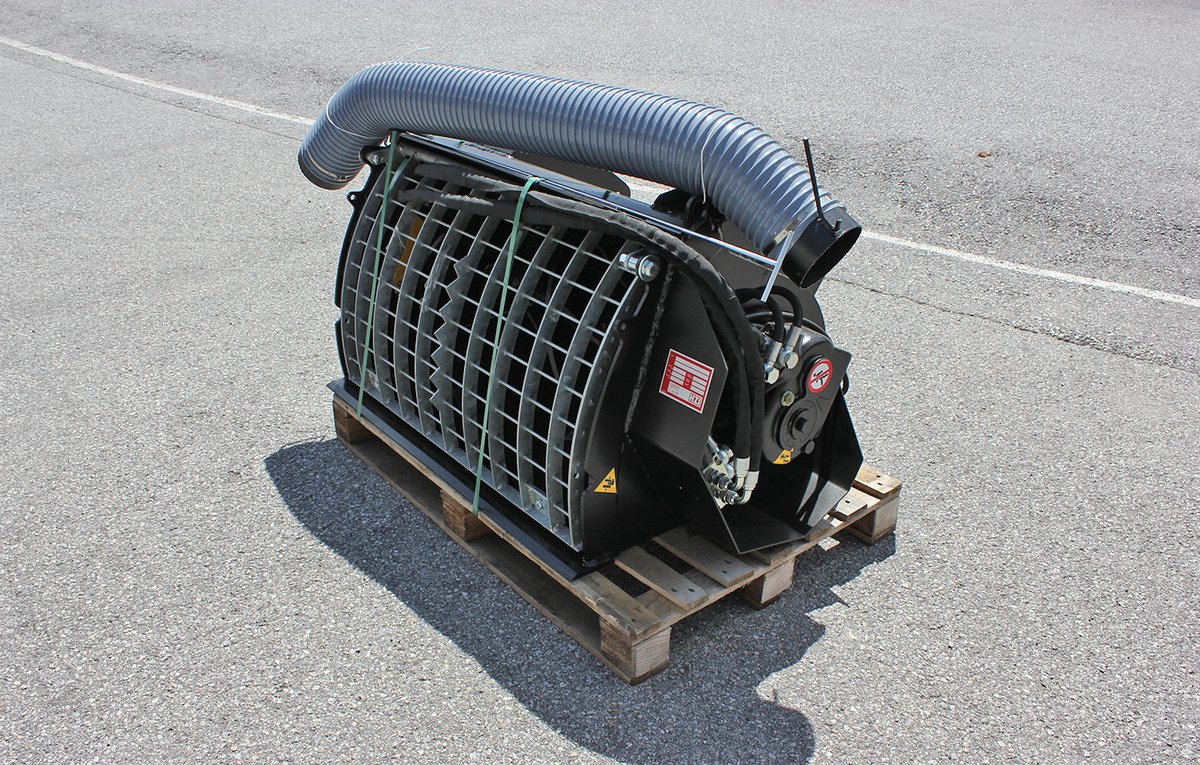

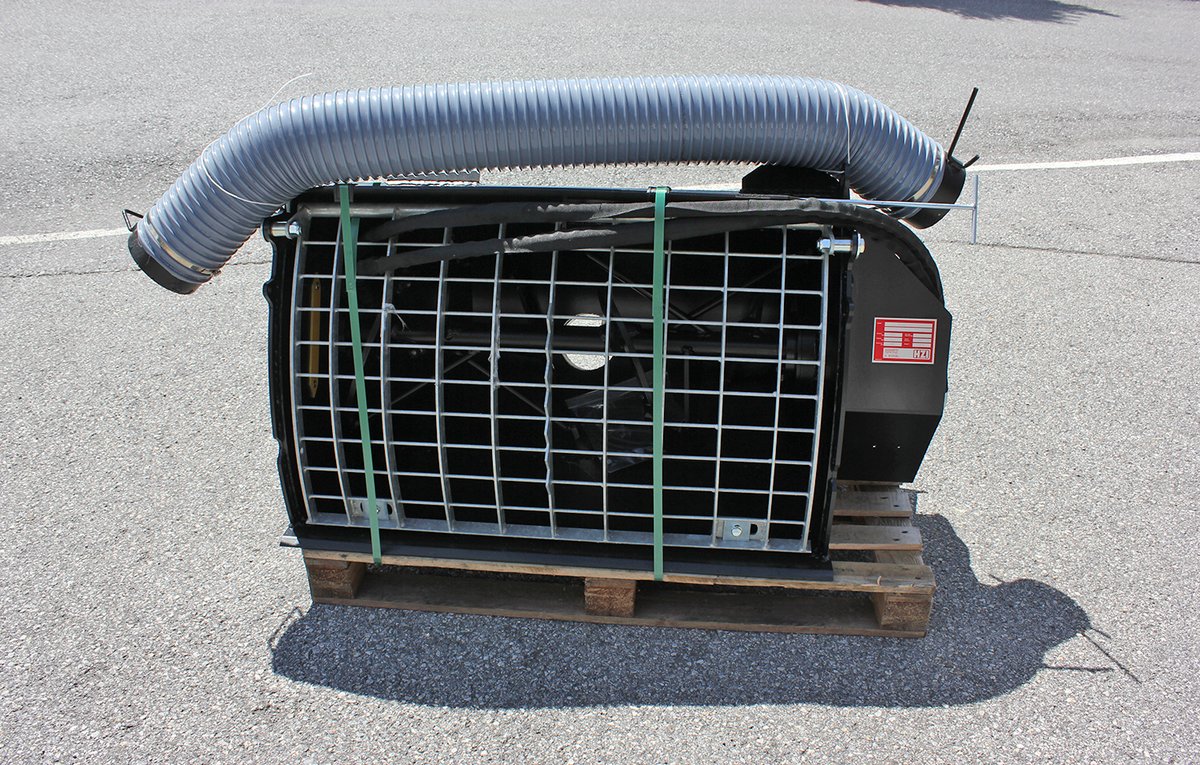

Concrete mixer bucket 200 litres

Capacity 200 litres
Artikelnummer: SI200
  • si200-01.jpg
  • si100-200
  • si200-02.jpg
  • si200-03.jpg
  • si200-04.jpg
  • si200-05.jpg

Technical data:

Power unit: gearbox
Content: 200 litres
Operating pressure min./max.: 130/180 bar
Necessary oil flow min./max.: 41-75 L/min

Sketch: A: 700; B: 900; C: 120; D: 1000; E: 85; F: 1205

Equipment of our concrete mixer buckets (200 litres, max. capacity 235 litres)
Weight: approx. 280 kg – Weight with concrete: approx. 760 kg
· Danfoss hydraulic motor OMR 160 with gearbox
· Auger from HARDOX 500 – thickness: 12mm
· Safety grid with prongs for opening the cement bags
· 6/2 valve for switching between mixing and hydraulic draining device
· Draininghose, length: 2m
· 2 pieces hydraulice hose and socket as well as cable set

Optionally available:
· Suitable holder for carrier device
· Inner lining of the bucket in HARDOX 450 - thickness: 4mm
· Gas spring for protective lattice incl. shut-off valve engine (lt. CE NORM)
· Diaphragm accumulator (pressure compensation for various carrier devices)

PDF-Download

Abmessungen
